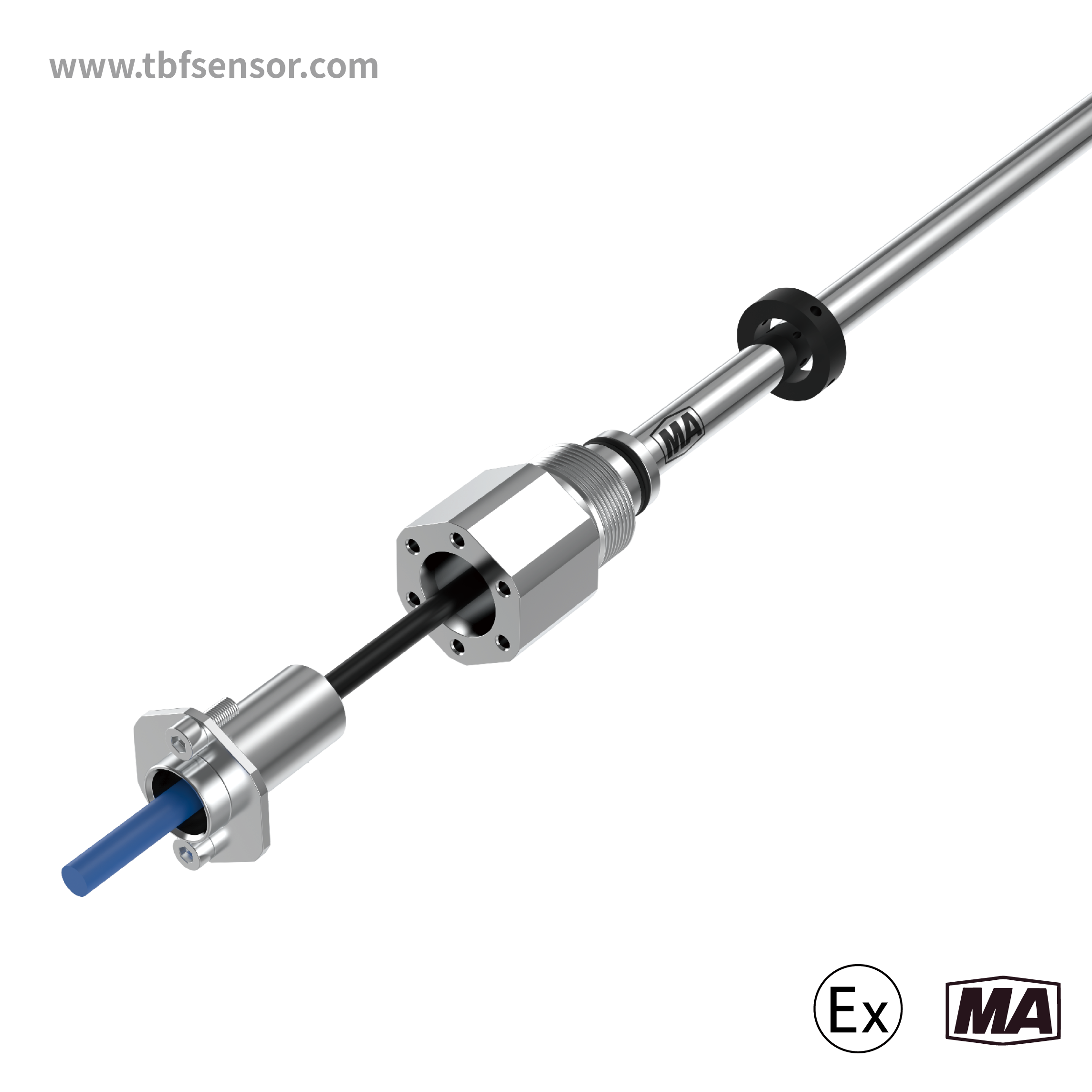

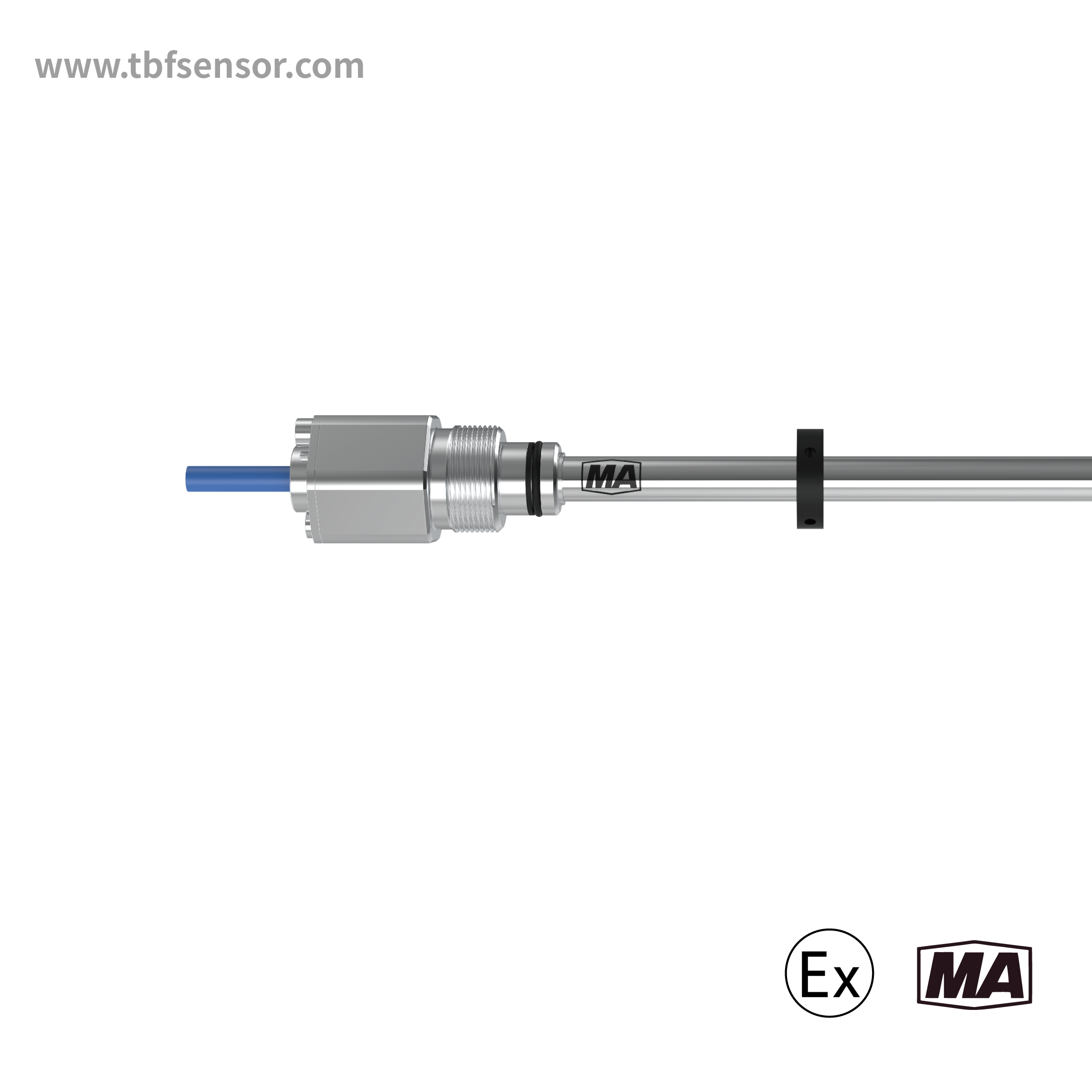

GUC1800(B)

Inner pressure-resistant outer tube
Analog
Analog
Range：50...2400mm
Resolution ratio：14-bit D/A
None-Linearity：≤±0.2%F.S.
Repeatability：≤±0.05%F.S.
Operating voltage：12VDC
Power consumption：＜30mA
Explosion proof type：Ex ib I Mb
