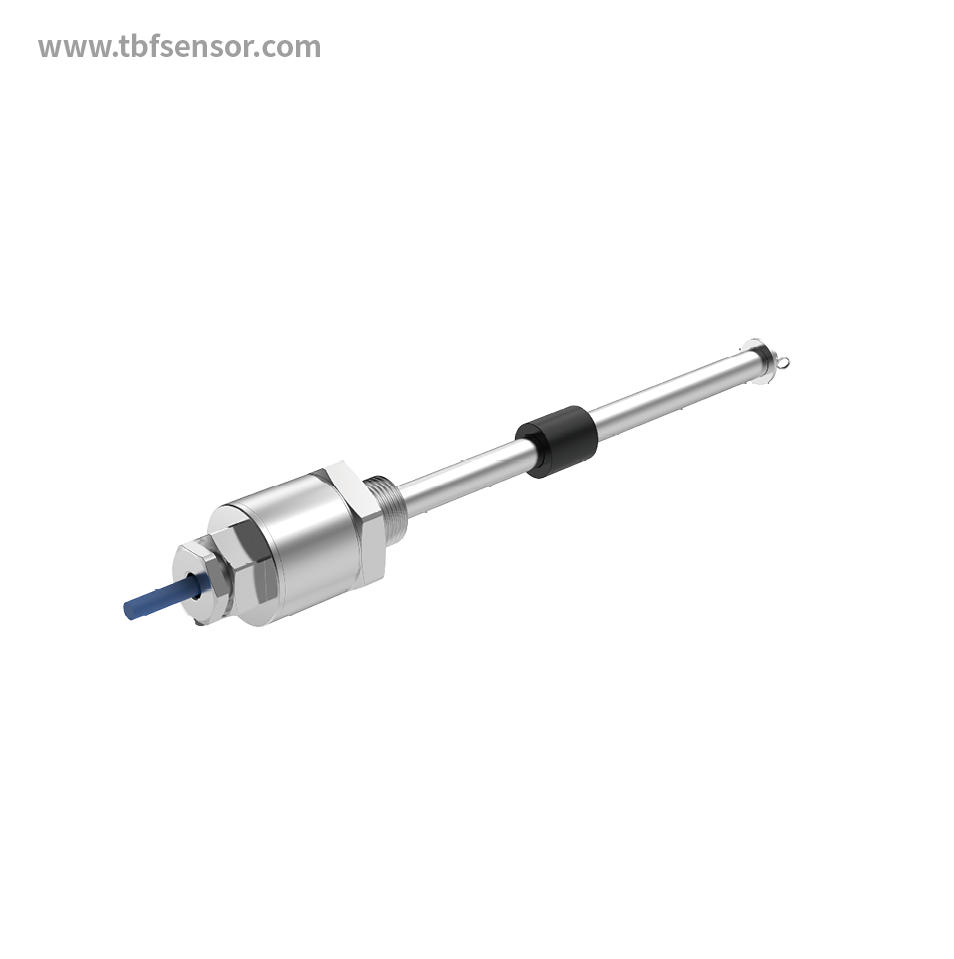

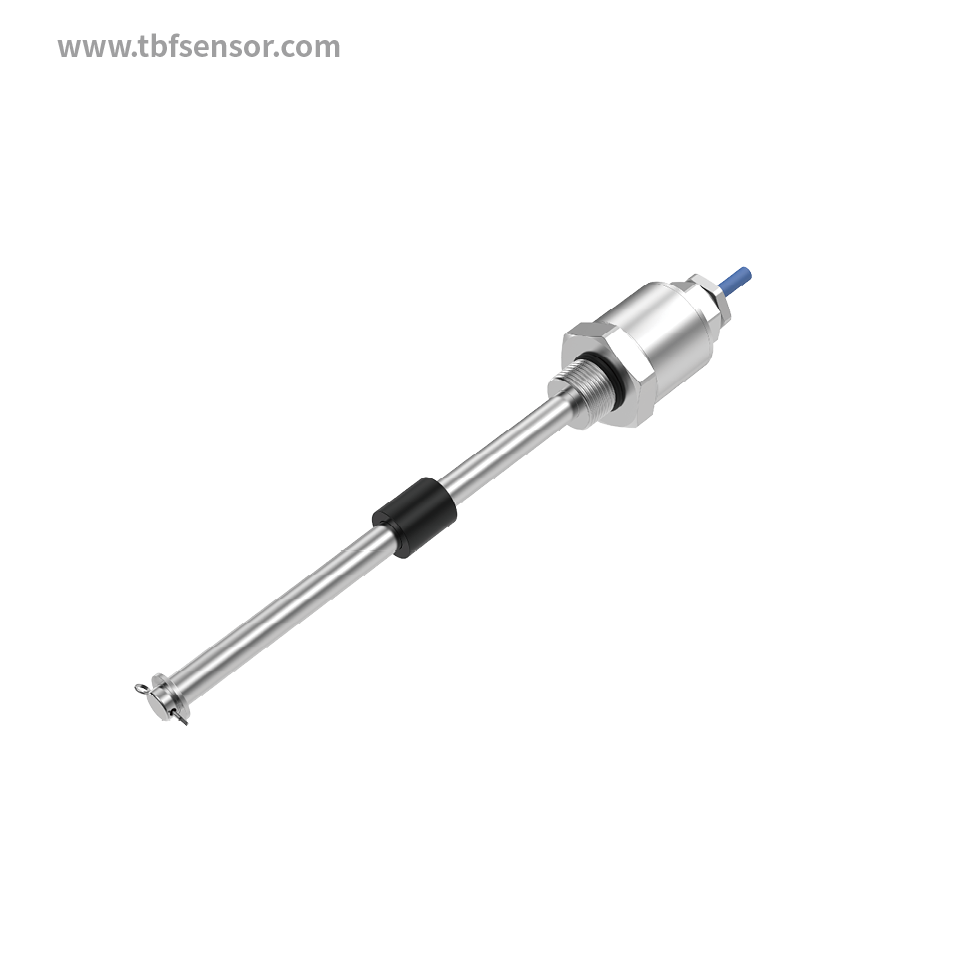

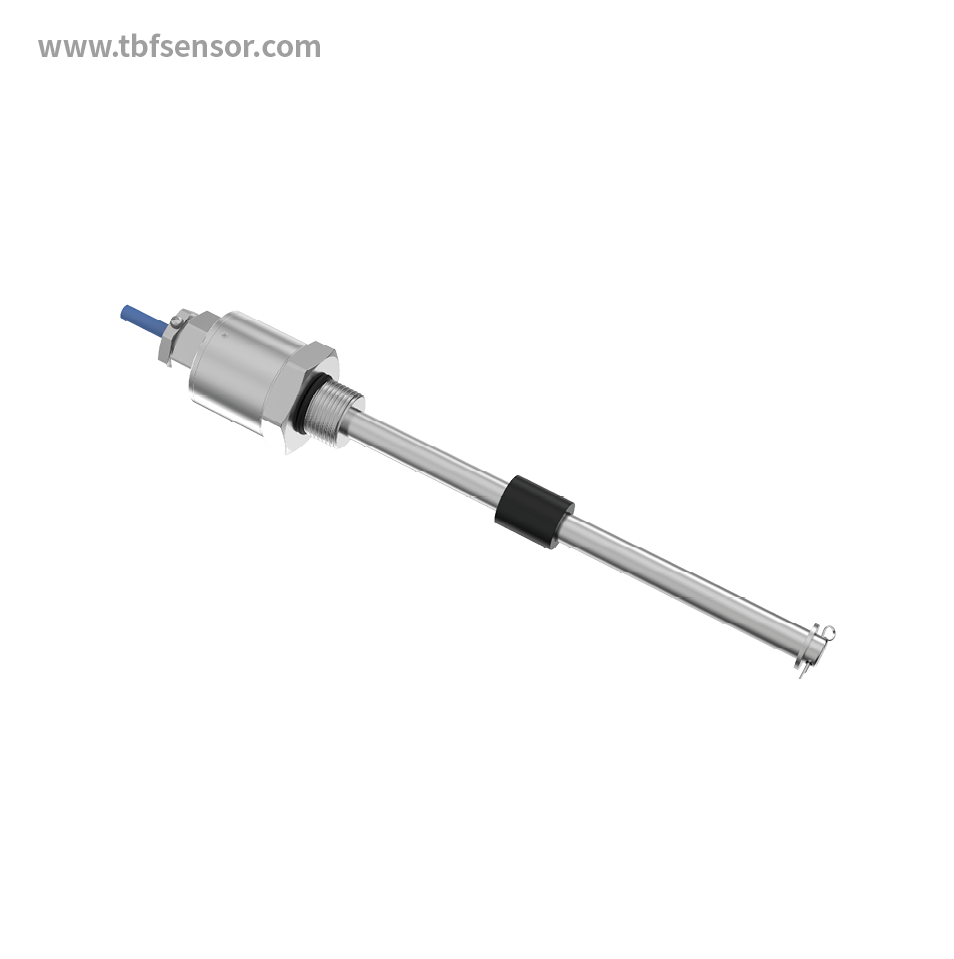

GYW3000/130
Explosion proof
- Analog
Measurement data：Liquid level、Temperature
Liquid level range：50…3000mm，
Temperature range：0…130℃
Liquid level precision ：±0.1% F.S.
Temperature precision：±1℃
Operating voltage：24VDC
Power consumption：＜70mA
Protection grades：IP68
Explosion-proof mark：Ex db I Mb
Download
Liquid level range：50…3000mm，
Temperature range：0…130℃
Liquid level precision ：±0.1% F.S.
Temperature precision：±1℃
Operating voltage：24VDC
Power consumption：＜70mA
Protection grades：IP68
Explosion-proof mark：Ex db I Mb
